CMM Room

Our state-of-the-art Coordinate Measuring Machine (CMM) room is designed to ensure precision and accuracy in all of our inspection processes. Equipped with a Mitutoyo CMM machine, our CMM room can accurately measure parts up to 700mm x 1000mm x 600mm in size with a precision of up to 2 microns. We ensure accuracy and consistency by keeping the

room temperature-controlled, regardless of external factors. Our CMM capabilities enable us to provide 2D reporting and detailed analysis of our customers’ parts, ensuring they meet even the strictest of specifications. Trust us to provide you with the highest level of precision measurement services for your manufacturing needs.

CMM Room

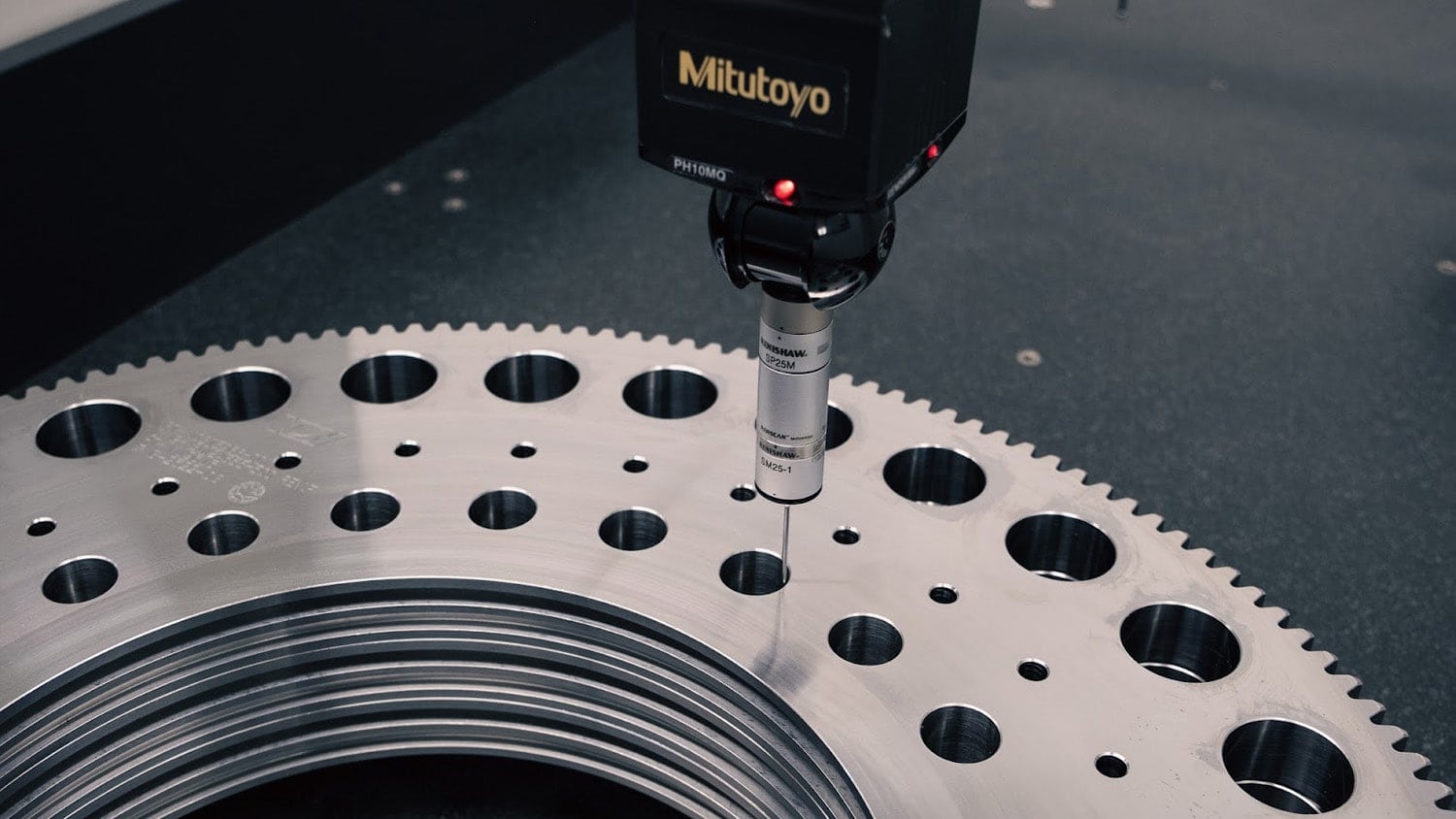

At Ideal Gear, we have a dedicated CMM room with a Mitutoyo CRYSTA APEX S 9168. This machine is a state-of-the-art coordinate measuring machine with a measurement range of 36″ x 36″ x 32″, making it capable of handling large parts with ease.

Temperature Control

Our CMM room is temperature-controlled to ensure that measurements are accurate and consistent. This is important in industries like aerospace, where even the slightest deviation can have serious consequences. By keeping the temperature consistent, we can ensure that our measurements are always accurate, even when dealing with complex parts.

2D Reporting

We provide 2D reporting for our CMM inspections, which allows us to provide detailed, accurate reports on the measurements we take. These reports can be used for quality control and to ensure that parts meet industry standards.

Benefits for Our Customers

Having a dedicated CMM room with a state-of-the-art machine like the Mitutoyo CRYSTA APEX S 9168 allows us to offer our customers a range of benefits. These include:

  • Accurate and consistent measurements
  • The ability to handle large parts
  • Detailed, accurate reports on measurements
  • Quality control and compliance with industry standards
  • By using our CMM room, we can ensure that our customers receive high-quality parts that meet their exact specifications.

Mitutoyo CMM

Crysta-Apex S 9168
Measuring Range
900mm (X) x 1600mm (Y) x 800mm (Z)
Maximum Workpiece Weight
1500 kg
2.5 micrometers + 2.5 L/1000 (at 20°C)
1.5 micrometers
Scanning Speed
3.1 m/s (XYZ simultaneous)
Maximum Acceleration
8.5 m/s²
  • Renishaw PH20 Probe Head with TP20 Touch Probe
  • MCosmos Software for CMM Programming and Reporting
  • Temperature Controlled CMM Room for Consistent Measurements

These specifications meet the rigorous standards required by engineers in industries such as aerospace, ensuring that our CMM provides accurate and repeatable measurements. The Renishaw PH20 Probe Head with TP20 Touch Probe allows for faster and more efficient scanning, while the MCosmos software enables precise CMM programming and reporting. Additionally, our temperature-controlled CMM room ensures consistent measurements regardless of external factors.


Working in a diversity of industries for over 100+ years, Ideal Gear has the experience and expertise to support any gear or gearbox across a wide range of machines and provide innovative solutions to our clients.
